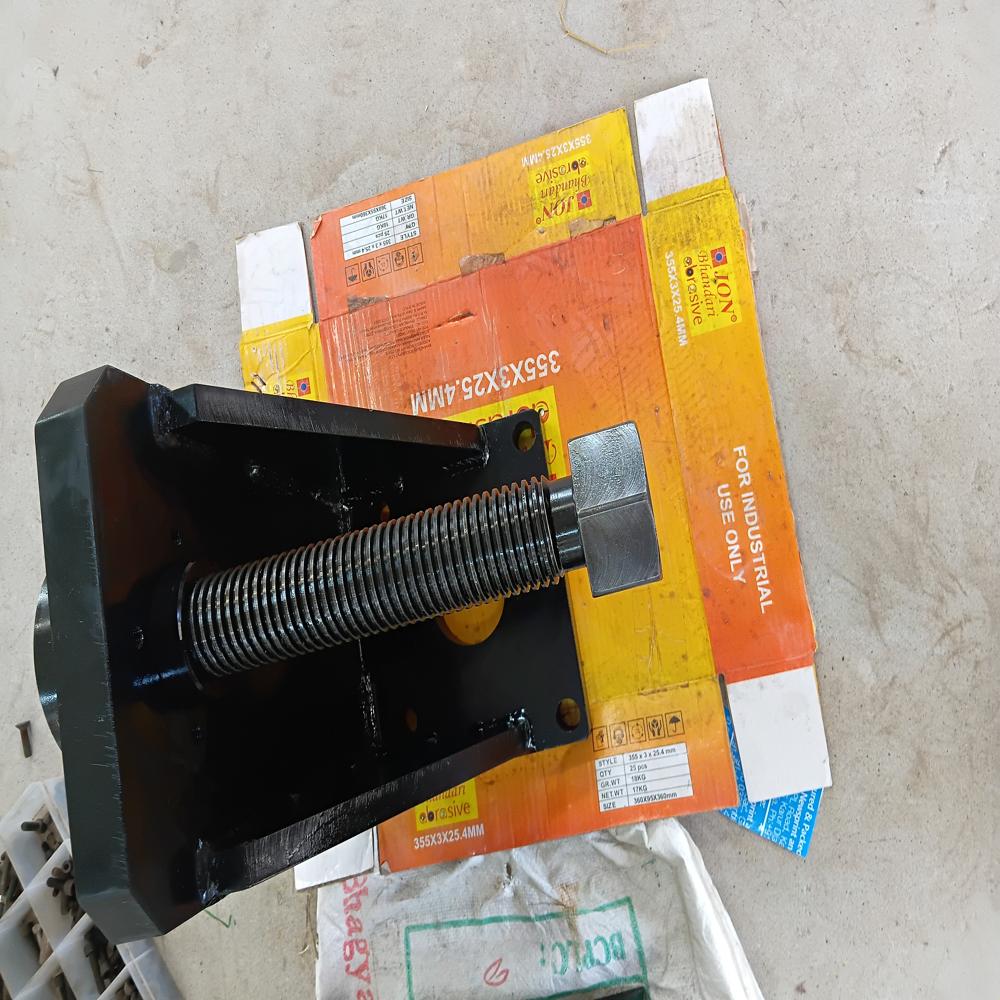

Special screw jacks for machining part support in VTL

Name: Special screw jacks for machining part support in VTL
Brand: TGM International
Price: 650 INR
Availability: InStock

Price 650 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Special screw jacks for machining part support in VTL Specification

Tool Type
VTL Machining Support Jack

Noise Level
Silent Operation

Power Source
Manual

Application
Workpiece/Component Support in Vertical Turning Lathes (VTL)

Product Type
Special Screw Jack for Machining Part Support

Material
Hardened Alloy Steel, Cast Iron Base

Computerized
No

Automatic Grade
Manual

Control System
Mechanical Lead Screw

Drive Type
Hand Operated

Weight (kg)
Approx. 8 - 15 kg (depending on model)

Dimension (L*W*H)
120 mm x 120 mm x 200 mm (custom sizes available)

Capacity
Up to 10 Tons (varies by model)

Feature
Adjustable Height, Precise Leveling, Heavy Duty Design

Color
Industrial Grey / Blue

Customization
Available as per machining requirement

Height Adjustment Range
30-150 mm (or as per model)

Jack Thread Type
Precision Trapezoidal Thread

Max Operating Temperature
Up to 80C

Safety Features
Overload Protection Mechanism

Surface Finish
Rust Resistant Coating

End Use Industry
Heavy Engineering, Fabrication, Automotive, Railways

Maintenance
Low; Periodic lubrication recommended

Base Plate Type
Broad for enhanced stability

Special screw jacks for machining part support in VTL Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About Special screw jacks for machining part support in VTL

Special Screw Jacks for Machining VTL Part Support
We manufacture and supply Special Screw Jacks designed for part support during Vertical Turning Lathe (VTL) machining operations. These screw jacks provide stable and adjustable support for heavy and irregular components, ensuring improved machining accuracy, reduced vibration, and enhanced safety. Manufactured using high-strength materials with precision threading, our screw jacks are ideal for fixture setups, heavy-duty machining, and custom tooling applications across engineering industries.
VTL MachiningFixtures ScrewJacks WorkHolding PrecisionEngineering Manufacturing CoimbatoreIndustry IndustrialTools

Precision Engineering for Heavy-Duty Tasks

Each jack is crafted with a precision trapezoidal thread system and a fitted overload protection mechanism, making them ideal for supporting heavy workpieces in demanding machining applications. The broad base plate increases stability while the rust-resistant coating ensures longevity in various operating conditions.

Superior Customization and Durability

Manufactured using hardened alloy steel and a robust cast iron base, these jacks accommodate custom dimensions and capacity requirements. Their adjustable height and precise leveling features enhance the versatility and reliability needed in heavy engineering and fabrication industries.

Low Maintenance, High Performance

Designed for manual, mechanical operation without computerized elements, these screw jacks ensure silent, smooth adjustment. With low routine upkeep, users simply need to lubricate periodically to maintain optimal function even in challenging environments.

FAQ's of Special screw jacks for machining part support in VTL:

Q: How is the height adjustment performed on these VTL machining support jacks?

A: The height of the support jack is manually adjusted using a mechanical lead screw mechanism. The precision trapezoidal thread allows for smooth, precise changes within a range of 30-150 mm, or as specified per model requirements.

Q: What safety features are included in these screw jacks?

A: Each jack is equipped with an overload protection mechanism to prevent damage during excessive load applications, ensuring operational safety and equipment longevity.

Q: When should periodic maintenance be performed on these jacks?

A: Though designed for low maintenance, it is recommended to carry out periodic lubrication of the moving parts, depending on the level of use and operating conditions, to ensure long-term optimal performance.

Q: Where can these screw jacks be used?

A: They are suitable for heavy engineering, fabrication units, automotive assembly, railway workshops, and any vertical turning lathe applications where stable, adjustable support is essential.

Q: What is the process for customizing jack dimensions or capacity?

A: If specific requirements are needed for size or load capacity, clients can request customization. The manufacturer will evaluate and produce the jack according to individual machining or operational needs.

Q: What are the main benefits of using these special screw jacks?

A: Key benefits include adjustable height, precise leveling, heavy-duty construction, rust-resistant coating, silent operation, and enhanced safety. These features contribute to consistent performance, stability, and long service life in demanding industrial settings.
