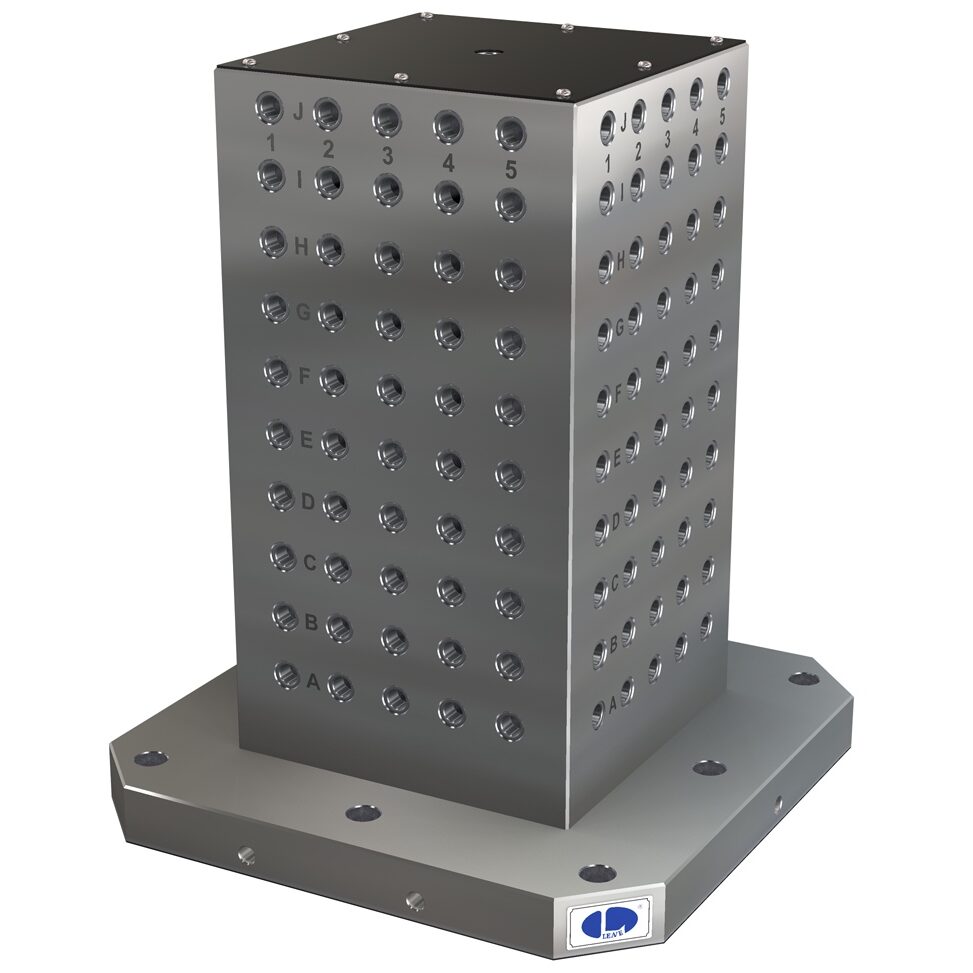

Cross Column HMC Tombstone fixture

Name: Cross Column HMC Tombstone fixture
Brand: TGM International
Price: 35000.0 INR
Availability: InStock

Price 35000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cross Column HMC Tombstone fixture Specification

Working Process
CNC Machining, Horizontal Machining Center (HMC) Application

Life Span
Up to 10 Years (Depending on Use)

Shaping Mode
Precision Milling

Material
Alloy Steel / Cast Iron (Customizable per Requirement)

Application
Machining Multiple Components Simultaneously in HMCs

Hardness
30-40 HRC (Standard), Can be Customized

Tolerance
0.01 mm

Number of Faces
Four (Customizable)

Customization
Available as per Machine Table Size and Application

Mounting
Base Mount with Multiple Clamping Holes

Weight Capacity
Up to 5 Tons (Varies by Model)

Accuracy
Squareness 0.02 mm/300 mm

Size Range
400 x 400 mm up to 800 x 800 mm

Fixture Type
Tombstone Cross Column

Surface Finish
Ground and Precision Machined

Finish Coating
Rust Preventive/Oil Coated

Cross Column HMC Tombstone fixture Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

Cross Column HMC Tombstone fixture About

Redeem your machining potential with the crowning Cross Column HMC Tombstone Fixture-an unrivaled solution engineered for precision and performance. Its four (customizable) faces and robust base mount with ample clamping holes ensure triumphant multi-component machining for HMCs. With a markdown on complexity and a clearance for flexibility, this fixture boasts up to 5 tons weight capacity, outstanding squareness accuracy (0.02 mm/300 mm), and a surface finished for longevity. Choose between alloy steel or cast iron, and experience up to 10 years of reliable service, customized to your requirements.

Expansive Applications for Enhanced CNC Productivity

The Cross Column HMC Tombstone fixture shines in machining centers where high productivity and precision are paramount. Specifically crafted for CNC machining and Horizontal Machining Center (HMC) applications, it enables simultaneous machining of multiple components. Its four-sided, customizable design makes it ideal for automotive, aerospace, and heavy engineering industries, as well as for mold and die manufacturing-anywhere multiple-part setups are necessary for efficient mass production.

Sample Terms, Shipping, and Certifications

Sample tombstone fixtures are available for dispatching to ensure fit and precision. We cater to major export markets across North America, Europe, Asia, and beyond, offering competitive lowest prices. Each unit is expertly packaged for safe delivery. Certifications include ISO 9001 and other industry standards aimed at assuring quality, durability, and precision. Samples can be swiftly provided for approval before bulk production or export, promising a streamlined procurement experience.

FAQ's of Cross Column HMC Tombstone fixture:

Q: How can the Cross Column HMC Tombstone fixture be customized for specific machine table sizes?

A: Customization is available for the fixture based on your specific machine table size and application needs. Simply provide your requirements, and the fixture can be tailored in terms of dimensions, material, and face configuration.

Q: What are the primary benefits of using this tombstone fixture in a Horizontal Machining Center?

A: The fixture enables simultaneous machining on multiple faces, reducing setup times and significantly increasing productivity on HMCs while maintaining exceptional accuracy and rigidity.

Q: Where is the Cross Column HMC Tombstone fixture applicable?

A: It is suitable for industries such as automotive, aerospace, heavy engineering, and mold manufacturing-any setting that requires multi-part machining and high throughput.

Q: What is the process for obtaining a sample before bulk purchase?

A: You can request a sample, which will be dispatched after confirmation. The sample will arrive well-packaged, allowing you to evaluate compatibility and performance prior to bulk ordering.

Q: Which certifications support the quality of the tombstone fixture?

A: The fixture is manufactured under internationally recognized certifications such as ISO 9001, ensuring high-quality standards and reliable performance.
