Jigs And Fixtures
Drill Jig For Valve Body

Drill Jig For Valve Body

MOQ : 10 Pieces

  • Application
  • Valve Body Machining
  • Hardness
  • 58-62 HRC
  • Life Span
  • High Durability (Over 10000 Cycles)
  • Material
  • Other, Alloy Steel
  • Shaping Mode
  • Other, Jig Fixture
  • Tolerance
  • 0.02 mm
  • Working Process
  • Other, Drilling
Know more

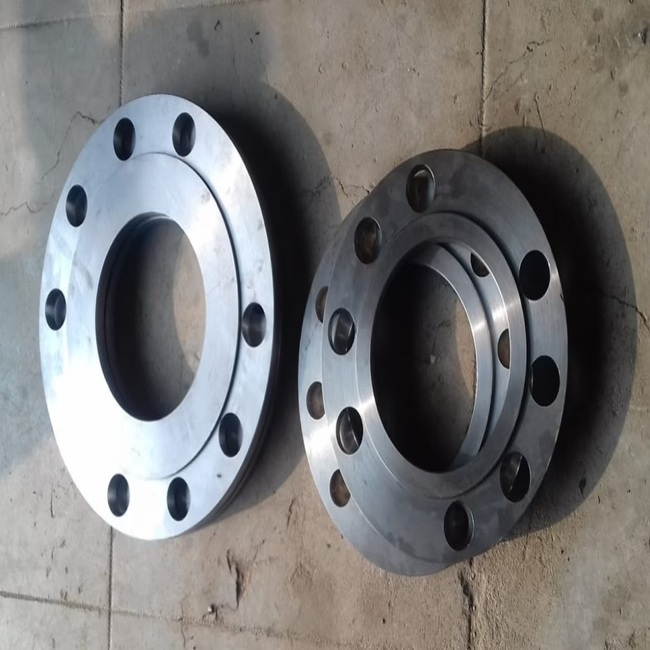

Hydro Testing Flanges for Valves

Hydro Testing Flanges for Valves

MOQ : 10 Pieces

  • Application
  • Valve Hydraulic Pressure Testing
  • Die Head
  • Precision Machined Steel Alloy
  • Hardness
  • 28-35 HRC (Depending on Material)
  • Life Span
  • 10-15 Years under Standard Operating Conditions
  • Material
  • Other, Carbon Steel / Stainless Steel (as per requirement)
  • Shaping Mode
  • Other, Forged and CNC Machined
  • Tolerance
  • 0.02 mm
  • Working Process
  • Other, Hydrostatic Pressure Testing
Know more

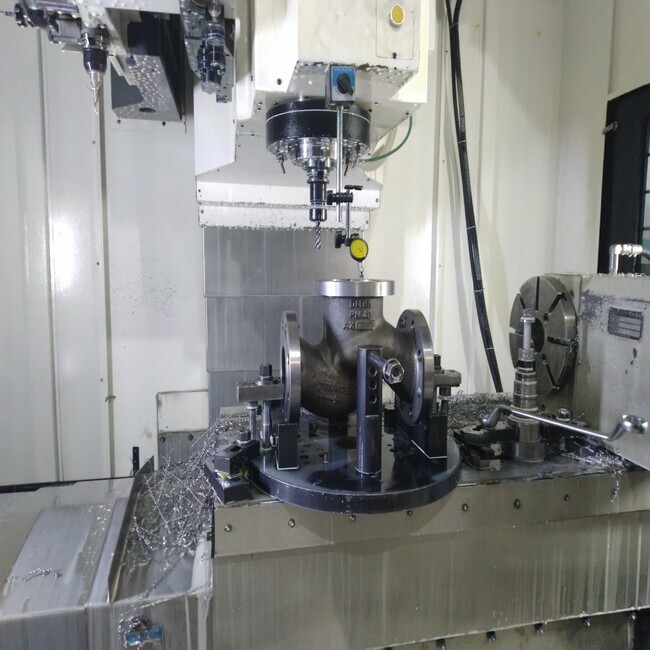

VMC Machining Fixture for Valve Body

VMC Machining Fixture for Valve Body

MOQ : 1 Unit

  • Application
  • Valve Body Machining, CNC/VMC Operations
  • Hardness
  • 55-60 HRC (after heat treatment)
  • Life Span
  • 5+ Years under normal operating conditions
  • Material
  • Other, High-grade Tool Steel (EN24/Hard Alloy)
  • Shaping Mode
  • Other, Custom Machined Fixture, Clamping Jaw Style
  • Tolerance
  • 0.01 mm
  • Working Process
  • Other, VMC Machining for Valve Body Holding & Precision Positioning
Know more

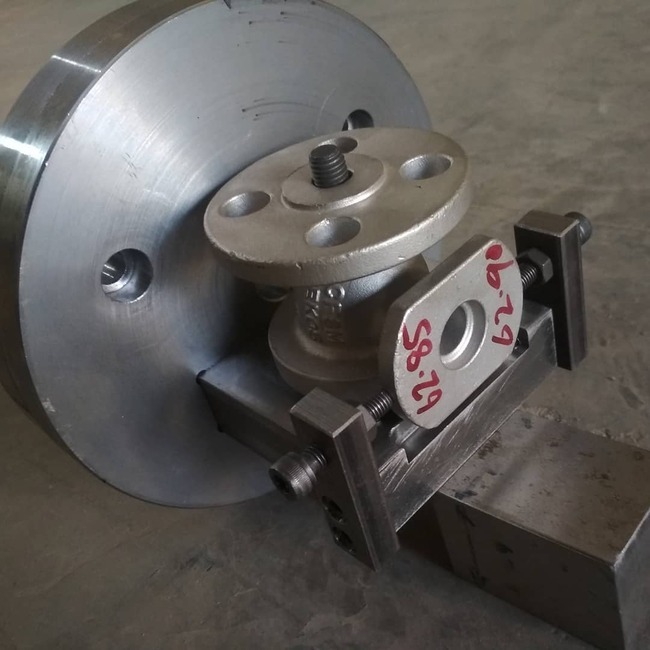

Cnc Turning Clamping Fixture

Cnc Turning Clamping Fixture

MOQ : 1 Unit

  • Application
  • Automotive, Aerospace, Industrial Machining
  • Hardness
  • 50-55 HRC
  • Life Span
  • 3-5 Years
  • Material
  • Other, Alloy Steel
  • Shaping Mode
  • Other, Clamping Fixture
  • Tolerance
  • 0.01 mm
  • Working Process
  • Other, CNC Turning
Know more
Welding Fixtures

Welding Fixtures

MOQ : 1 Unit

  • Application
  • Holding, Locating, and Supporting Workpieces During Welding
  • Hardness
  • 30-45 HRC
  • Life Span
  • Up to 5 Years (Depending on Usage and Maintenance)
  • Material
  • Other, Mild Steel (MS), Hardened Tool Steel
  • Shaping Mode
  • Other, Modular/Custom Fabrication
  • Tolerance
  • 0.02 mm
  • Working Process
  • Other, Welding, Assembly Support
Know more
Pneumatic VMC Fixtures

Pneumatic VMC Fixtures

MOQ : 1 Unit

  • Application
  • VMC Machines, CNC Machining, Precision Component Holding
  • Die Head
  • Semi-automatic Pneumatic Clamping Head
  • Hardness
  • 45-55 HRC
  • Life Span
  • Approx. 5-8 Years (Under Standard Working Conditions)
  • Material
  • Other, Alloy Steel/High-grade Cast Iron
  • Shaping Mode
  • Other, Fixture and Clamping
  • Tolerance
  • 0.01 mm
  • Working Process
  • Other, CNC Machining, Automated Clamping via Pneumatics
Know more
Hydraulic VMC Fixture

Hydraulic VMC Fixture

MOQ : 1 Unit

  • Application
  • Component Clamping in VMC Machines
  • Die Head
  • Not Applicable (Fixture Type)
  • Hardness
  • 55-60 HRC (Fixture Contact Areas)
  • Life Span
  • Up to 5 Years Depending on Usage
  • Material
  • Other, High-Grade Alloy Steel
  • Shaping Mode
  • Other, Precision Machined Fixture Body
  • Tolerance
  • 0.01 mm
  • Working Process
  • Other, Hydraulic Clamping & Unclamping for CNC/VMC Operations
Know more

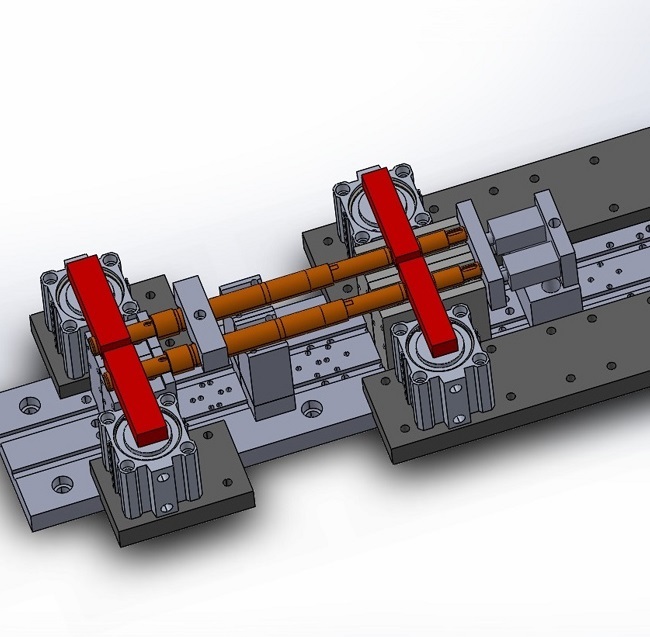

V Block Fixture for texmo pump shaft Keyway

V Block Fixture for texmo pump shaft Keyway

MOQ : 1 Unit

  • Application
  • Keyway machining on Texmo pump shaft
  • Hardness
  • 58-62 HRC
  • Life Span
  • More than 3 years under normal use
  • Material
  • Other, Hardened Alloy Steel
  • Shaping Mode
  • Other, Precision Ground V Block with Clamping Arrangement
  • Tolerance
  • 0.01 mm
  • Working Process
  • Other, Workpiece holding and fixture for keyway machining
Know more
CMM Holding Fixtures

CMM Holding Fixtures

MOQ : 1 Unit

  • Application
  • Coordinate Measuring Machine (CMM), Quality Control, Metrology Labs
  • Hardness
  • Varies by Component; typically 60-65 HRC (Steel Parts)
  • Life Span
  • Up to 10 Years (Depending on Use)
  • Material
  • Other, Aluminum, Stainless Steel & Polycarbonate
  • Shaping Mode
  • Other, Modular Adjustable Clamping
  • Tolerance
  • 0.01 mm
  • Working Process
  • Other, Precision Workpiece Holding during CMM Inspection
Know more

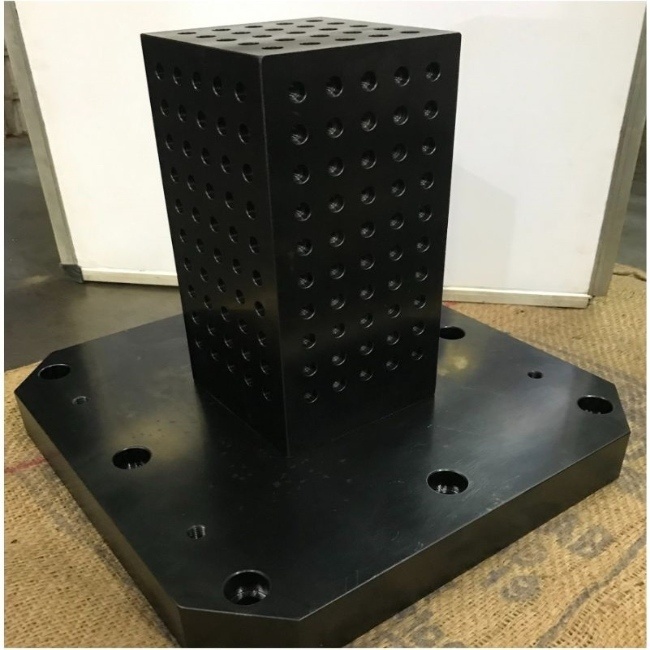

HMC Tombstone Fixtures

HMC Tombstone Fixtures

MOQ : 1 Unit

  • Application
  • Horizontal Machining Center (HMC)
  • Hardness
  • HRC 48-52
  • Life Span
  • Long Service Life
  • Material
  • Other, Alloy Steel
  • Shaping Mode
  • Other, Clamping Fixture
  • Tolerance
  • 0.01 mm
  • Working Process
  • Other, CNC Machined
Know more
Pneumatic Clamping vices for assembly

Pneumatic Clamping vices for assembly

MOQ : 1 Unit

  • Application
  • Assembly workstation, manufacturing, component holding
  • Hardness
  • Jaw hardness 55-60 HRC
  • Life Span
  • Up to 5 years (depending on usage and maintenance)
  • Material
  • Other, High-grade alloy steel body with hardened jaws
  • Shaping Mode
  • Other, Clamping vice
  • Tolerance
  • 0.02 mm
  • Working Process
  • Other, Pneumatic clamping operation for quick and secure assembly holding
Know more
Radiator Welding Assembly Fixtures

Radiator Welding Assembly Fixtures

MOQ : 1 Unit

  • Application
  • Radiator Core and Tank Welding
  • Die Head
  • Custom Designed Modular Die Head
  • Hardness
  • 60-62 HRC on Contact Surfaces
  • Life Span
  • Up to 5 Years (Depends on Usage and Maintenance)
  • Material
  • Other, High-Grade Tool Steel and Alloy Steel
  • Shaping Mode
  • Other, Precision Clamping & Positioning
  • Tolerance
  • 0.02 mm
  • Working Process
  • Other, Automated/Manual Radiator Welding Assembly
Know more

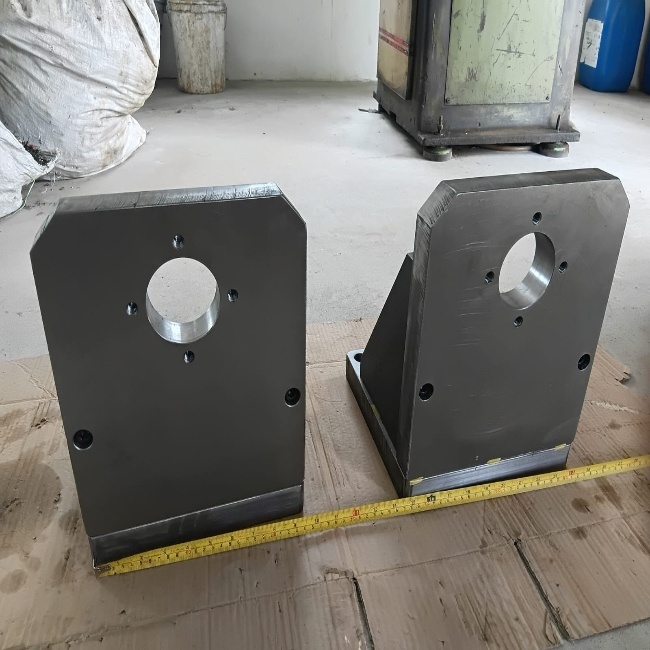

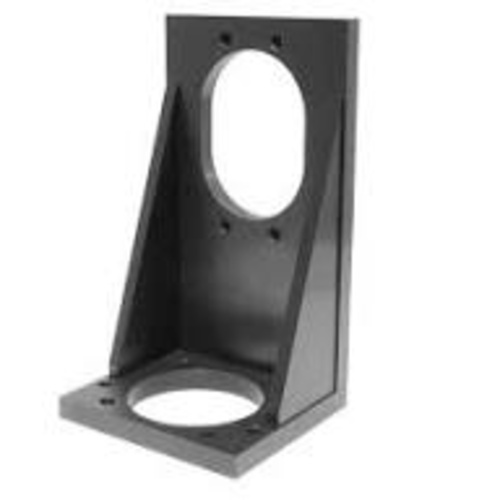

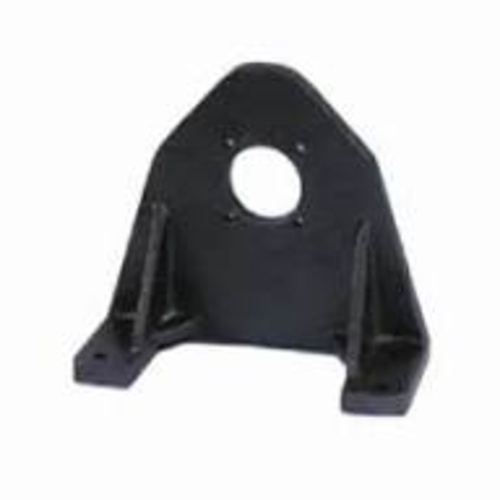

Fabricated L Bracket

Fabricated L Bracket

MOQ : 10 Pieces

  • Application
  • Support Bracket for Structural and Mechanical Fixtures
  • Hardness
  • 58-62 HRC
  • Life Span
  • 10 Years
  • Material
  • Other, Mild Steel
  • Shaping Mode
  • Other, Sheet Metal Bending
  • Tolerance
  • 0.2 mm
  • Working Process
  • Other, Fabrication and Welding
Know more
Robotic welding fixtures

Robotic welding fixtures

MOQ : 1 Unit

  • Application
  • Automotive, Industrial Fabrication, Heavy Machinery
  • Die Head
  • Custom-configured precision mount for robotic application
  • Hardness
  • 54-58 HRC
  • Life Span
  • Up to 5 Years (depending on use and maintenance)
  • Material
  • Other, Hardened Steel, Alloy Steel, and Tool Steel
  • Shaping Mode
  • Other, Fixture-based positioning and clamping
  • Tolerance
  • 0.05 mm
  • Working Process
  • Other, Automated Robotic Welding
Know more
Masala Drum Welding Fixture for Robotic weld

Masala Drum Welding Fixture for Robotic weld

MOQ : 1 Unit

  • Application
  • Welding of masala drums for food processing industry
  • Die Head
  • Single cavity, precision-machined, robotic-compatible
  • Hardness
  • 58-62 HRC
  • Life Span
  • 5-8 years depending on usage
  • Material
  • Other, Alloy steel, hardened and ground
  • Shaping Mode
  • Other, Custom fixture positioning with clamps and locators
  • Tolerance
  • 0.05 mm
  • Working Process
  • Other, Automatic robotic welding
Know more

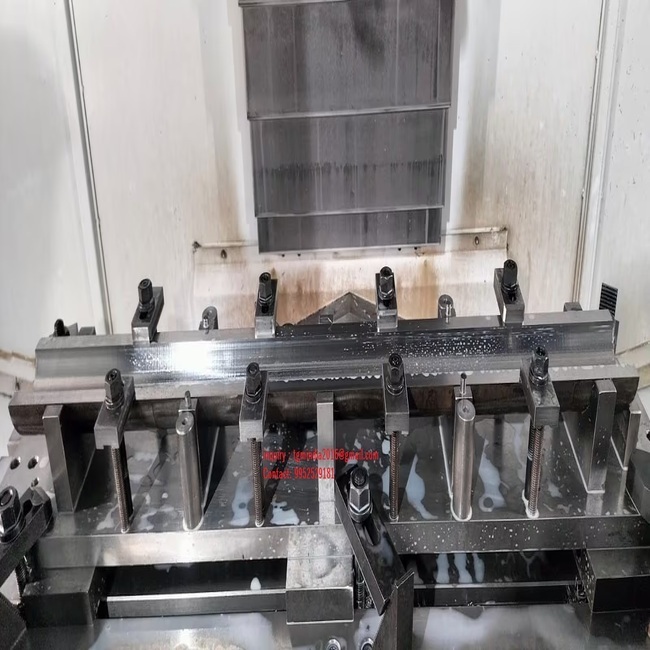

VMC Machining Fixture For Crusher Parts

VMC Machining Fixture For Crusher Parts

MOQ : 1 Unit

  • Application
  • Crusher Parts Machining, VMC Fixtures
  • Die Head
  • Compatible with multiple VMC models
  • Hardness
  • HRC 50-54
  • Life Span
  • Up to 5 years under standard conditions
  • Material
  • Other, Alloy Steel, Hardened
  • Shaping Mode
  • Other, Clamping and locating for machining
  • Tolerance
  • 0.01 mm
  • Working Process
  • Other, CNC VMC Machining, Precision Clamping
Know more
