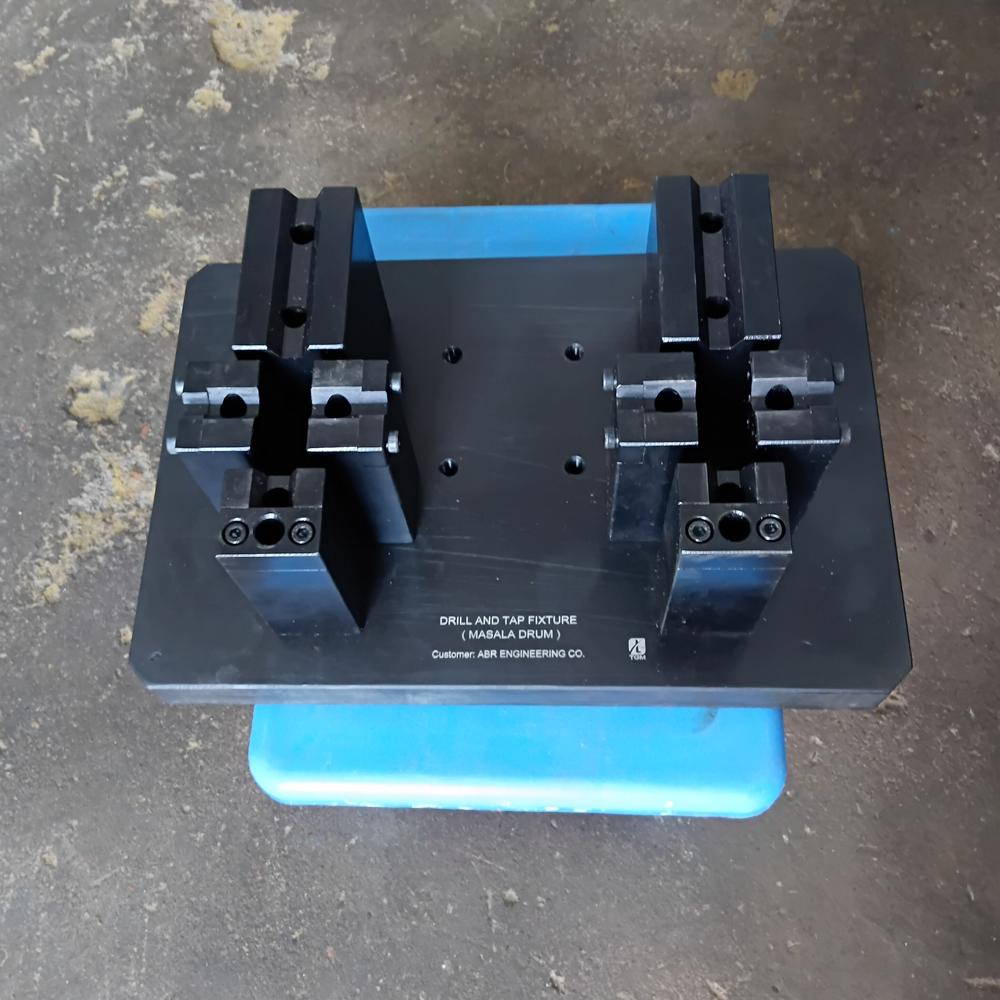

Work Holding Mechanical Fixture

Name: Work Holding Mechanical Fixture
Brand: TGM International
Price: 25000.0 INR
Availability: InStock

Price 25000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Work Holding Mechanical Fixture Specification

Life Span
5-7 Years

Working Process
Manual Clamping and Unclamping

Die Head
Included

Shaping Mode
Mechanical

Material
High Grade Alloy Steel

Application
Machining, Milling, Drilling, Inspection

Hardness
58-62 HRC

Tolerance
0.02 mm

Size
Customizable

Fixture Type
Work Holding Mechanical Fixture

Precision
High Precision Engineering

Mounting Type
Bench/Bed Mountable

Surface Finish
Ground and Hardened

Weight Capacity
Up to 150 kg

Corrosion Resistance
Yes

Color
Metallic Grey

Clamping Type
Mechanical Vise

About Work Holding Mechanical Fixture

We are a leading manufacturer and exporter of high-performance Work Holding Mechanical Fixtures designed for precision machining applications. These fixtures are engineered to securely hold components during CNC, VMC, and HMC operations, ensuring maximum stability, repeatability, and accuracy. Manufactured using premium-grade materials and advanced machining techniques, our fixtures are ideal for heavy-duty industrial usage.

Our mechanical fixtures are easy to operate, require minimal maintenance, and are customized as per client drawings and specifications. Widely used in automotive, aerospace, and general engineering industries, they enhance productivity and reduce machining cycle time.

Parameter	Details
Product Type	Mechanical Work Holding Fixture
Material	Alloy Steel / EN8 / EN19 / Mild Steel
Surface Finish	Black Oxide / Nickel Plated / Powder Coated
Hardness	4560 HRC (as required)
Clamping Type	Manual Mechanical Clamping
Application	CNC / VMC / HMC Machining
Accuracy	High Precision (0.01 mm)
Design	Standard & Custom Design
Usage	Industrial Work Holding
Corrosion Resistance	Yes

Use and Application of Our Products:

Precision CNC machining
Milling and drilling operations
Component positioning and clamping
Batch production and mass manufacturing
Automotive and aerospace component machining

Use the Sector:

Automotive Industry
Aerospace Industry
Heavy Engineering
Machine Tool Industry
Oil & Gas Industry
General Manufacturing

Superior Workholding Stability

Designed for machinists who demand absolute stability, this mechanical fixture ensures consistent, secure clamping, enabling accurate machining, milling, drilling, and inspection operations. The ground and hardened finish provides exceptional durability, while high-precision engineering maintains work integrity throughout repeated use.

Customizable for Varied Applications

This fixture supports a diverse set of operational requirements with customizable size options. Its bench or bed mountability makes it versatile, fitting seamlessly into different workshop setups. The included die head and corrosion-resistant metallic grey finish guarantee dependable performance across industries.

Engineered for Endurance and Precision

Manufactured from high-grade alloy steel and hardened to 58-62 HRC, this fixture is designed to sustain up to 150 kg loads with minimal maintenance. Its high tolerance level of 0.02 mm and life span of up to 7 years underscore its reliability and precision for rigorous manual clamping processes.

FAQ's of Work Holding Mechanical Fixture:

Q: How is the Work Holding Mechanical Fixture installed in a workshop?

A: The fixture can be securely mounted on a bench or machine bed using compatible mounting holes. This fastens the vise steadily in place, ensuring enhanced stability during machining, milling, drilling, and inspection operations.

Q: What applications is this mechanical fixture most suitable for?

A: This fixture is ideal for high-precision tasks such as machining, milling, drilling, and component inspection, where secure and accurate workpiece positioning is essential. Its high tolerance and hardness make it suitable for demanding industrial environments.

Q: When should I use a mechanical vise clamping system like this?

A: A mechanical vise clamping system is recommended when manual control, repeatable accuracy, and a secure grip are crucial-particularly during processes that require minimal movement or vibration of the workpiece, such as high-precision machining and inspection.

Q: Where can the fixture be mounted for optimal performance?

A: For optimal performance, the fixture should be mounted directly onto a stable, flat bench or the bed of machine tools. Its versatile design makes it compatible with various workshop layouts and equipment setups.

Q: What is the process for manual clamping and unclamping using this fixture?

A: To operate, simply position your workpiece between the jaws, then manually adjust the vise handle to clamp or release. The mechanical shaping mode ensures a consistent, uniform grip every cycle.

Q: How does the high-grade alloy steel and ground surface finish benefit the user?

A: The high-grade alloy steel composition provides excellent structural strength, while the ground and hardened surface finish (58-62 HRC) ensures long-lasting durability and enhanced corrosion resistance, reducing wear during prolonged usage.

Q: What are the primary advantages of using this work holding fixture?

A: Users benefit from high precision (0.02 mm tolerance), robust corrosion resistance, a customizable size range, and the capacity to handle up to 150 kg. The fixture is engineered for a 5-7 year lifespan, making it a long-term solution for intricate and repetitive workshop operations.
