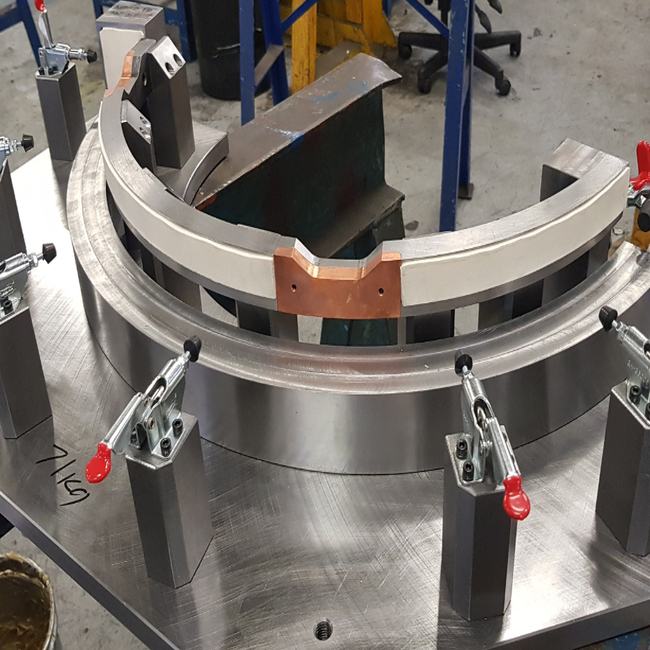

Welding Jig And Fixture

Name: Welding Jig And Fixture
Brand: TGM International
Price: 25000 INR
Availability: InStock

Price 25000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Welding Jig And Fixture Specification

Life Span
Up to 5 Years (Depending on Usage and Maintenance)

Working Process
Welding, Assembly Support

Shaping Mode
Modular/Custom Fabrication

Material
Mild Steel (MS), Hardened Tool Steel

Application
Holding, Locating, and Supporting Workpieces During Welding

Hardness
30-45 HRC

Tolerance
0.02 mm Millimeter (mm)

Heat Resistance
Up to 300C

Design Software Compatibility
AutoCAD, SolidWorks, CATIA

Surface Finish
Powder Coated or Plated

Assembly Method
Bolted or Welded Construction

Holding Capacity
Up to 2000 kg

Corrosion Resistance
Yes, with Surface Coating

Replacement Parts
Available on Request

Dimension Customization
Available as per Requirement

Fixture Type
Manual or Pneumatic Clamping

Welding Jig And Fixture Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Coimbatore

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Welding Jig And Fixture

Technical Details
