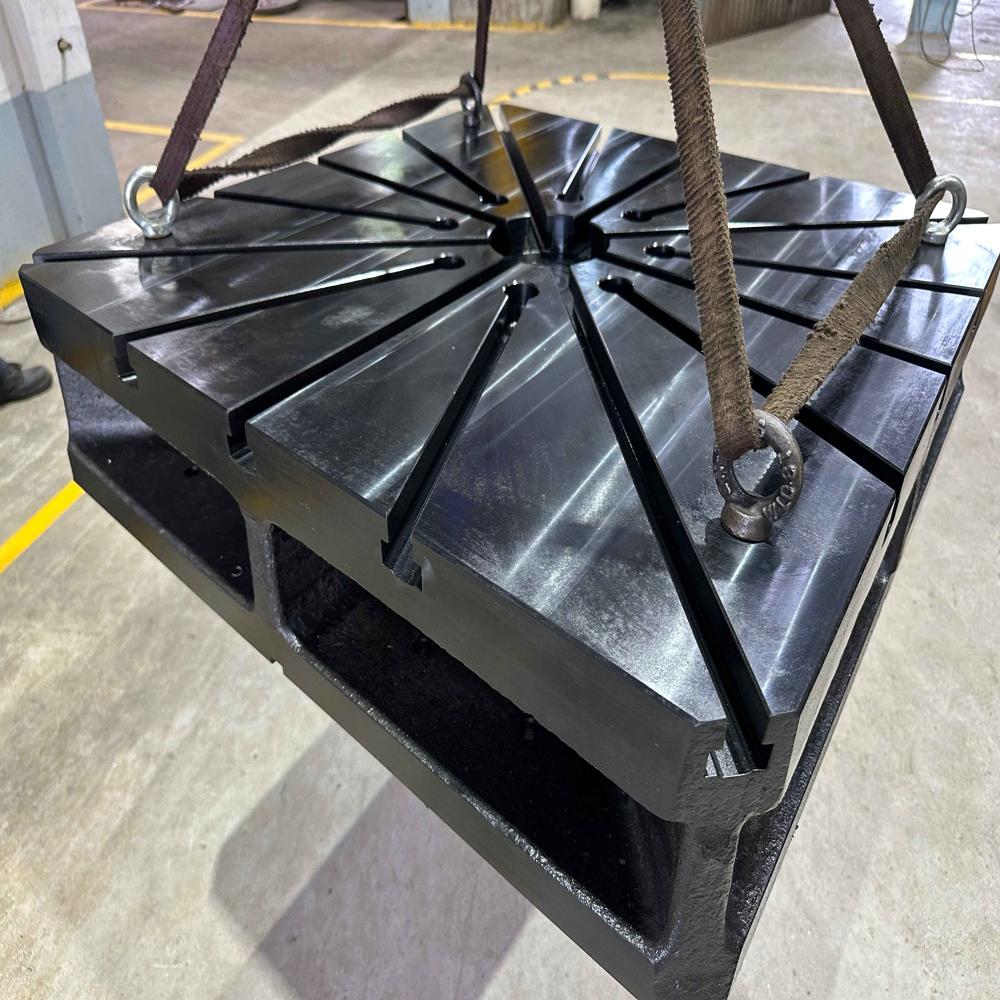

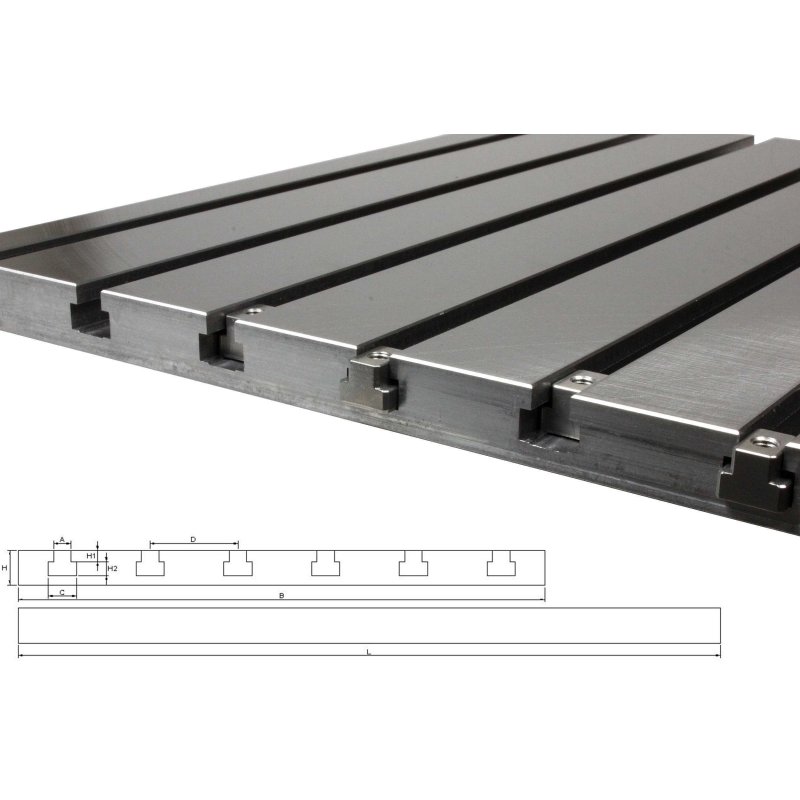

VMC Base plates with T-slots

Name: VMC Base plates with T-slots
Brand: TGM International
Price: 25000.0 INR
Availability: InStock

Price 25000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

VMC Base plates with T-slots Specification

Working Process
CNC machined and surface ground

Life Span
8-10 years under standard use

Shaping Mode
Solid rectangular plate with precision machined T-slots

Material
Grade Cast Iron (FG-260 or similar as per IS 210)

Application
Work holding, fixturing, base for vertical machining centers (VMC)

Hardness
180-220 HB

Tolerance
0.02 mm per meter

Flatness Accuracy
0.01 mm per 300 mm

Surface Finish
Hand scraped / precision ground

Surface Protection
Anti-rust oil coated

Color
Standard grey / black paint finish on non-machined surfaces

Customization
Available on request (dimensions, slot number, pattern)

T-slot Size
Standard as per machine requirement (typically 14mm, 18mm, 22mm etc.)

Load Capacity
Up to 10 metric tons (depending on size)

Manufacturing Standard
IS 2062, IS 210, DIN 876

Mounting Holes
Available as per customer's drawing

Plate Thickness
Custom as per design, commonly 50 mm to 150 mm

VMC Base plates with T-slots Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

About VMC Base plates with T-slots

Get the sizzling advantage of VMC Base Plates with T-slots, engineered to deliver a radiant, dazzling performance in machining environments. Featured with hand-scraped or precision-ground surfaces, these plates offer perfect flatness accuracy of 0.01 mm per 300 mm. Custom-built from top-grade cast iron (FG-260), they accommodate T-slot sizes as per your machine's needs, ensuring a secure fit. Enjoy superior load capacity up to 10 metric tons, anti-rust oil coating, and a durable life span of up to 8-10 years. Our plates are finished in sleek grey or black, precisely CNC-machined, customizable, and compliant with international manufacturing standards. Ideal for work holding and fixturing in VMC applications.

Key Features & Applications of VMC Base Plates with T-slots

VMC Base Plates with T-slots showcase dazzling versatility in industrial settings. These solid rectangular plates, crafted from high-grade cast iron and designed with precision-machined T-slots, deliver perfect work holding and fixturing solutions for vertical machining centers. Radiant flatness and tolerance ensure optimal accuracy for every application-from precision manufacturing to heavy-duty plant machinery support. With an impressive load capacity and robust anti-rust protection, these plates are essential for seamless plant operations and value-driven manufacturing.

Packing, Dispatch, and Commercial Terms for VMC Base Plates

Each VMC Base Plate is carefully packed & dispatched to ensure a secure handover at your specified FOB port. We accommodate a variety of payment terms and provide clear list price details prior to shipment. Sample units are available on request, allowing you to assess radiant quality before bulk orders. Our streamlined process ensures products are delivered promptly and in perfect condition, meeting both distributor requirements and individual client expectations across international markets.

FAQ's of VMC Base plates with T-slots:

Q: How do I select the correct T-slot size for my VMC Base Plate?

A: You can choose the T-slot size based on your machine's requirements-standard options like 14mm, 18mm, and 22mm are available. Custom sizes can also be provided upon request.

Q: What is the process for customizing the plate thickness or slot pattern?

A: Customization is straightforward; simply provide your design specifications or drawing. Our manufacturing team will CNC-machine the plates to your exact dimensions, thickness, slot number, or pattern.

Q: Where are these VMC Base Plates typically used?

A: These plates are mainly used as work holding and fixturing bases in vertical machining centers (VMCs), but are also ideal for various industrial and plant machinery applications requiring flat, stable support.

Q: What is the surface protection provided to these plates?

A: Each plate is coated with anti-rust oil to ensure long-lasting surface protection, maintaining its performance and appearance even in demanding environments.

Q: When is a sample available, and how can I request one?

A: Sample units are available prior to placing a bulk order. To request a sample, please contact our sales team with your requirements and intended usage.

Q: What benefits do these VMC Base Plates offer compared to standard mounting solutions?

A: Our plates provide precise flatness, radiant durability, high load capacity, and customizable options-ensuring dazzling performance and reliability for various industrial tasks.
